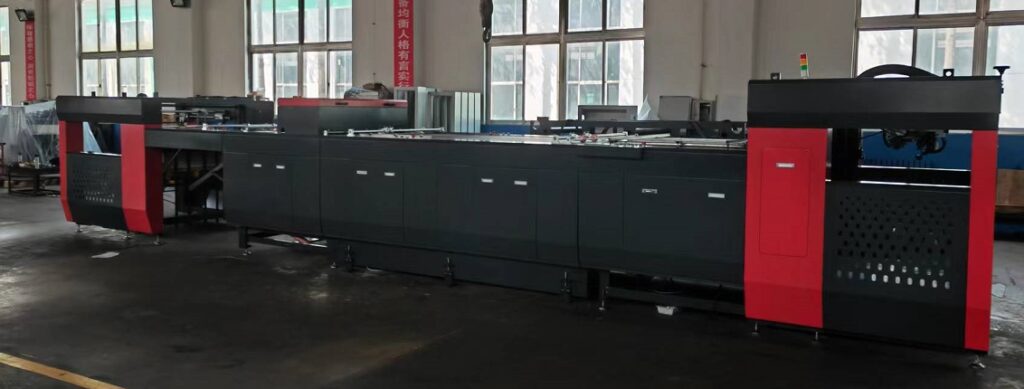

Metal Sheet Transport-GS1 Code Coding-Inspection-Rejection
Feeding roll-table, iron printing feeder, positioning(including double sheet rejection), ink-jet platform, ink-jet coding system (optional, or optional laser coding system), led UV curing (optional, matching according to ink type), image system(optional),rejection/ sampling table, receiving machine, receiving roller deck, etc.
The system is widely used in metal plate packaging industries such as iron printing, can making, lid making, etc Variable data coding and printing inspection, adopting modular design, can expand more applications.
Solution Details
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum sheet metal conveying speed | 80 m/min |
| Maximum sheet metal size (width × other) | 1150 mm (width) × 1020 mm |
| Minimum metal plate size (width × other) | 680 mm (width) × 712 mm |
| Metal plate thickness range | 0.16 – 0.6 mm |
| Total power of the platform | 31 kW (excluding LED UV) |
| LED UV curing system (optional) | According to customer requirements |
| Positioning accuracy (width) | ±0.20 mm |
| Overall dimensions (L × W × H) | 1900 × 160 × 180 cm |
How It Work

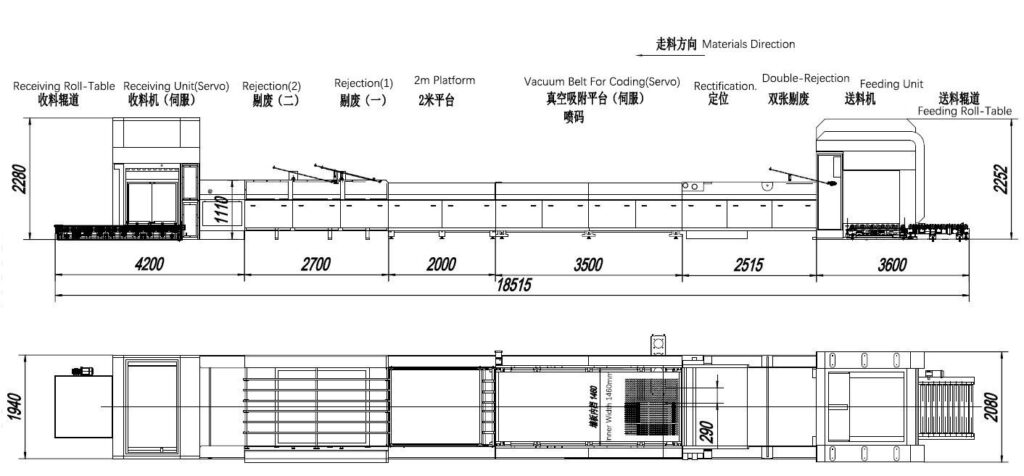

Machine workflow
Feeder Roll-Table
- Electric conveying of material stack and quick centering adjustment
- Feeding load bearing: 2.5 tons
Feeder
- Professional iron printing feeder
- Double sheet detection device
- Rectification device
- Cylinder side push gauge + unilateral stop gauge for positioning
- High stability with ±0.2mm accuracy
- Handwheel adjustment on both sides for quick plate specification changes
Vacuum Platform
- Extended 3.5m vacuum adsorption platform (supports additional modules: variable data inkjet, laser coding, photographic detection, etc.)
- Main drive: Servo motor (high precision)
- Negative pressure flat belt: Imported from Germany
- Structural stability:
- 40mm thick integral steel wallboard
- New drawer-type vacuum structure (easy maintenance)
- Cantilever negative pressure platform (belt replacement without shaft removal)
- Tensioning belt: Fast and convenient adjustment
- Proprietary negative pressure design: Strong, uniform suction for flat material operation
2m Coding Platform
- LED UV curing device (installable)
- Steel frame structure with wide belt + vacuum adsorption
- Expandable detection/verification space
Double Rejection Device
- Waste kicking device: Auto-removal of defective products (requires photo detection)
- Secondary unit functions as a sampling platform
Receiving Unit
- Main drive: Siemens Servo motor
- Surface adsorption to prevent material damage
- Auto-stop: Alarms and halts production when material reaches preset height
Receiving Roll-Table
- Electric receiving (no manual pushing/pulling required)
