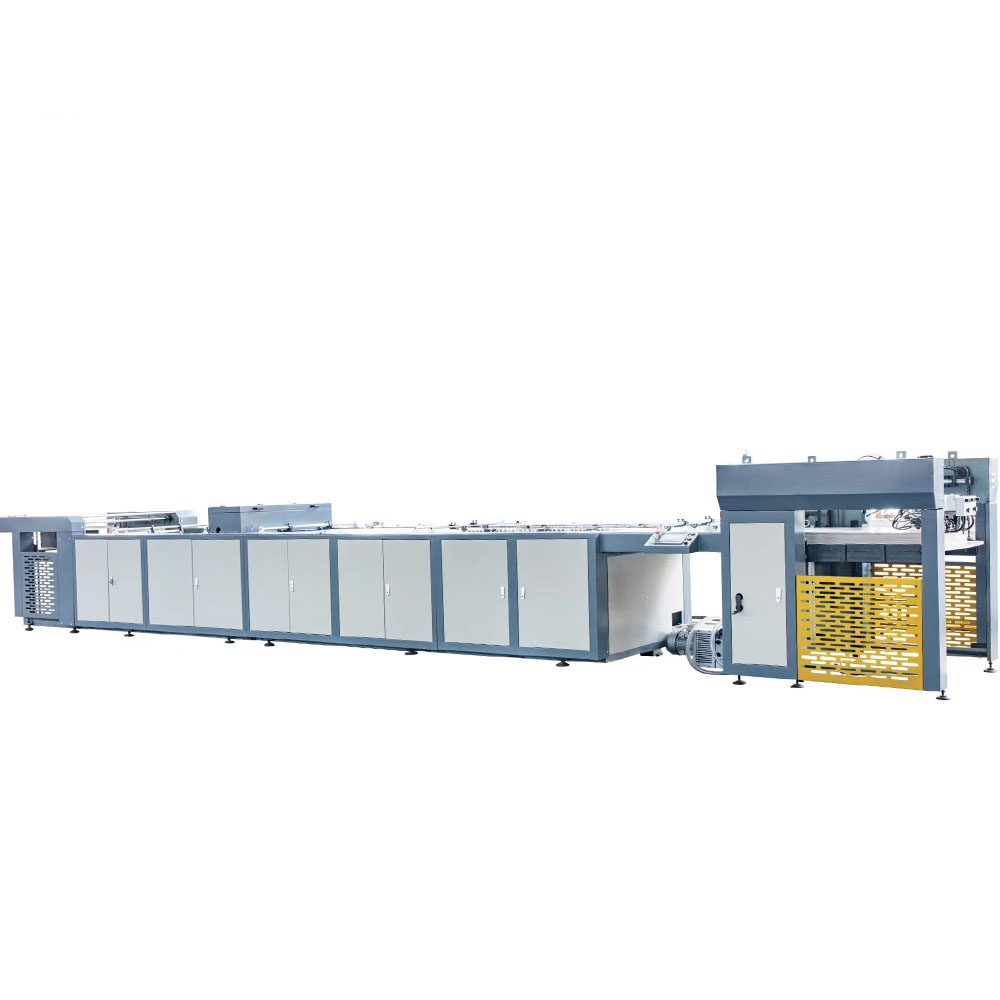

Paper Sheet Transport Coding System

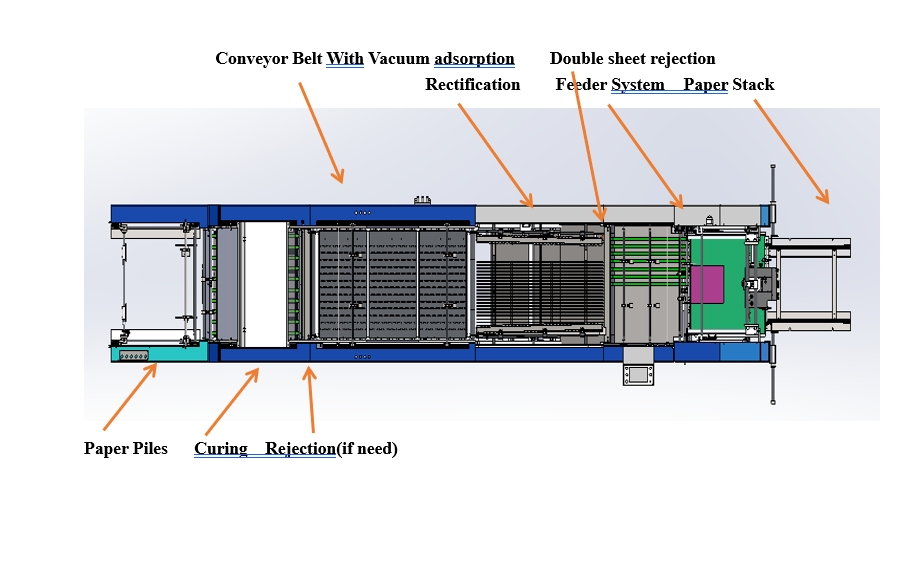

1) . Paper conveying

The printing machine is used for four suction and four feeding and high speed Feder (the maximum speed is 13000 sheets/hour). The paper can be stacked up to about 3000 sheets at a time on a high platform, and the stacking height is 1200MM, greatly improving the working efficiency. The conveying part is equipped with a pressing wheel device, which makes the paper feeding more stable. Adopt ultrasonic wave to detect double sheets, and automatically alarm and shut down.

2) . Side gauge deviation correction

The elongated diagonal ball side gauge positioning structure is used for positioning during the paper operation, with the positioning accuracy of ± 0.1mm.

3) Spray code adsorption

High stability platform, the whole process suction synchronous belt conveying is adopted to make the paper conveying more stable,

4) Scraping part

Pneumatic flap waste removal device, which can be used in conjunction with the detection system to remove waste accurately and equipped with waste paper collection platform, can effectively reduce waste

5) . Fish scale paper receiving

After the paper is solidified, the fish scale superposition can reduce the paper speed and facilitate the paper receiving, especially for the thin paper, which has more advantages.

6) . Paper receiving section

The funnel-shaped paper receiving is combined with the vibrating motor to make the paper receiving more neat, and automatically drops according to the paper receiving capacity.

7) . Electrical control system

The four drives of paper conveying, side gauge correction, code spraying adsorption and fish scale paper receiving are all driven by servo motors, with high operation accuracy and stable operation. Different speeds can be set for each separate drive according to different requirements.
