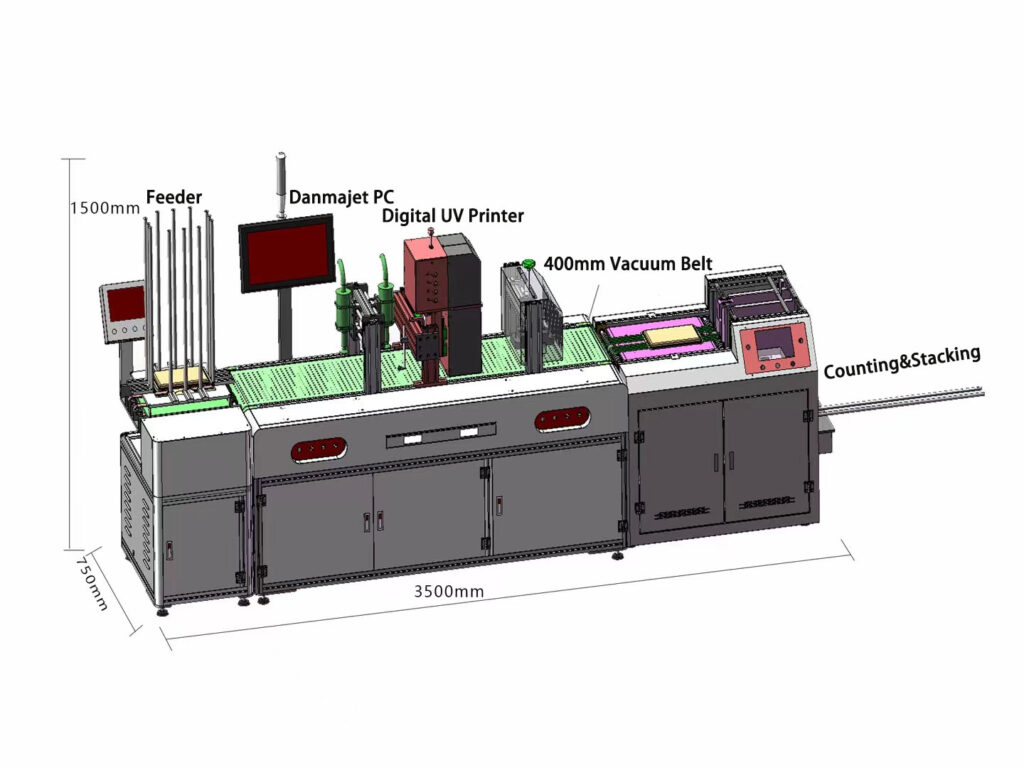

Container Lids Digital Printing System
This device is mainly independently designed by Danmajet company and equipped with its UV digital applications, with high efficiency and no need for plate making. Mainly used for lunch boxes, container boxes, and big size lids. The soluition is stable and highly integrated.
Solution Details
Technical Specifications
Printing technology: Piezoelectric inkjet
Printing method: Vertical downward, single-sided
Color configuration: CMYK+W (optional)+V (optional)
Printing speed:20-50m/min,base on different DPI
Resolution:300*600 or 300*1200DPI
Ink type: UV Ink
Curing: Water Cooling+UVLED
Feed width:50-400mm,can be customized
Printing width:54mm or 108mm
Medium thickness:0.1-50mm
Medium Support: Metal, wood, plastic, paper and other materials.
Equipment size:3000*1250*1700mm or customized according to function.
Power supply:220V
Power:4KW
Ambient temperature:-7~35℃
Ambient humidity: 65-80% relative humidity
Deviation Rectifying: Yes.
Material feeding method: fully automatic downward suction feeding, fully automatic counting and receiving.
Production efficiency:4000-6000P/H
